Alternator vs Battery: How to Tell Which One Is Failing
Your car won't start this morning. Is it the alternator, the battery, or both? This is one of the most common diagnostic puzzles in automotive repair — and getting it wrong means paying for the wrong part. Here's exactly how to tell which one is failing.
Quick Diagnostic: The 60-Second Test
Before spending money on parts or shop labor, do this test with a $15 multimeter:
- Engine OFF: Measure voltage at battery terminals. 12.4–12.7V = healthy battery. Below 12.0V = dead or weak battery.
- Engine ON: Measure again. 13.5–14.8V = alternator is charging normally. Below 13.0V = alternator problem.
If the battery is healthy but the alternator isn't charging — the alternator is the problem. If both test low, charge the battery first, then retest the alternator.
Symptom Comparison: Alternator vs Battery
| Symptom | Alternator | Battery |
|---|---|---|
| Car dies while driving | ✓ (voltage drops to zero) | Unlikely (battery supports running) |
| Car won't start, clicks when turning key | Unlikely | ✓ (low cranking power) |
| Battery light on dash | ✓ (charging system issue) | Sometimes |
| Headlights dim while driving | ✓ | Less likely |
| Car starts fine, dies after 30 min | ✓ (not recharging battery) | Unlikely |
| Car dead after sitting overnight | Less likely | ✓ (parasitic draw or failing battery) |
| Repeated dead batteries | ✓ (overcharging or undercharging) | ✓ (end of service life) |
The Jump Start Test
If you jump-start the car and it runs fine for 30+ minutes then dies again, the alternator is almost certainly the problem — it's not recharging the battery after the jump. If the car dies quickly after the jump (under 10 minutes), both the alternator and battery may be failing, or you have a parasitic draw issue.
Can a Bad Alternator Kill a New Battery?
Yes — absolutely. This is one of the most common costly mistakes in automotive repair:
- Overcharging alternator (above 15V): boils battery electrolyte, warps plates, destroys the battery in weeks
- Undercharging alternator: forces the battery into repeated deep discharge cycles, killing battery chemistry
Always test the alternator before and after replacing a battery. If the alternator is faulty, the new battery will fail within months.
Can a Bad Battery Damage the Alternator?
Yes. A battery that can't hold a charge forces the alternator to run at maximum output continuously, causing it to overheat. A battery with a shorted cell can also cause erratic voltage spikes that stress alternator components. Replace bad batteries promptly.
What to Do After Diagnosis
If It's the Alternator

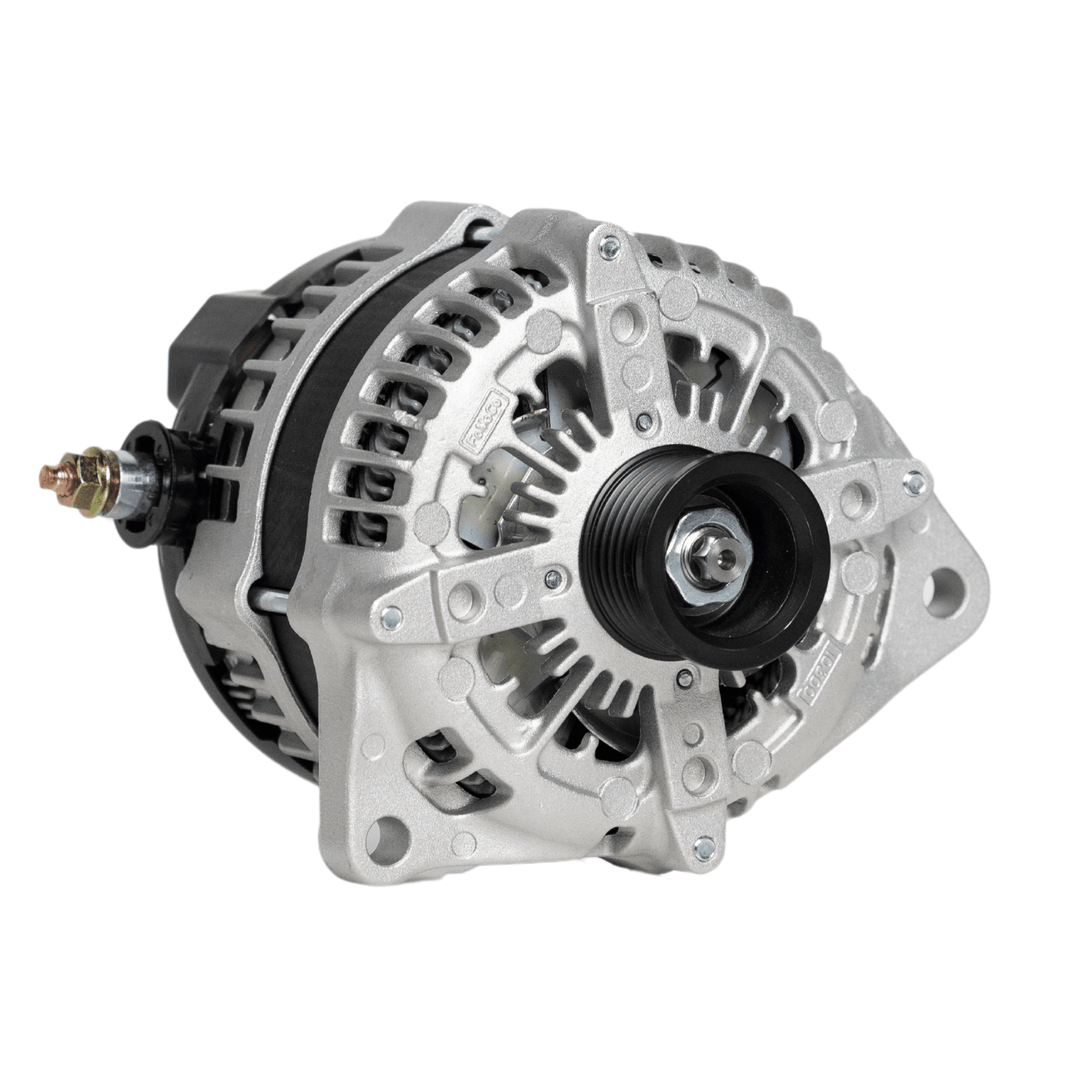

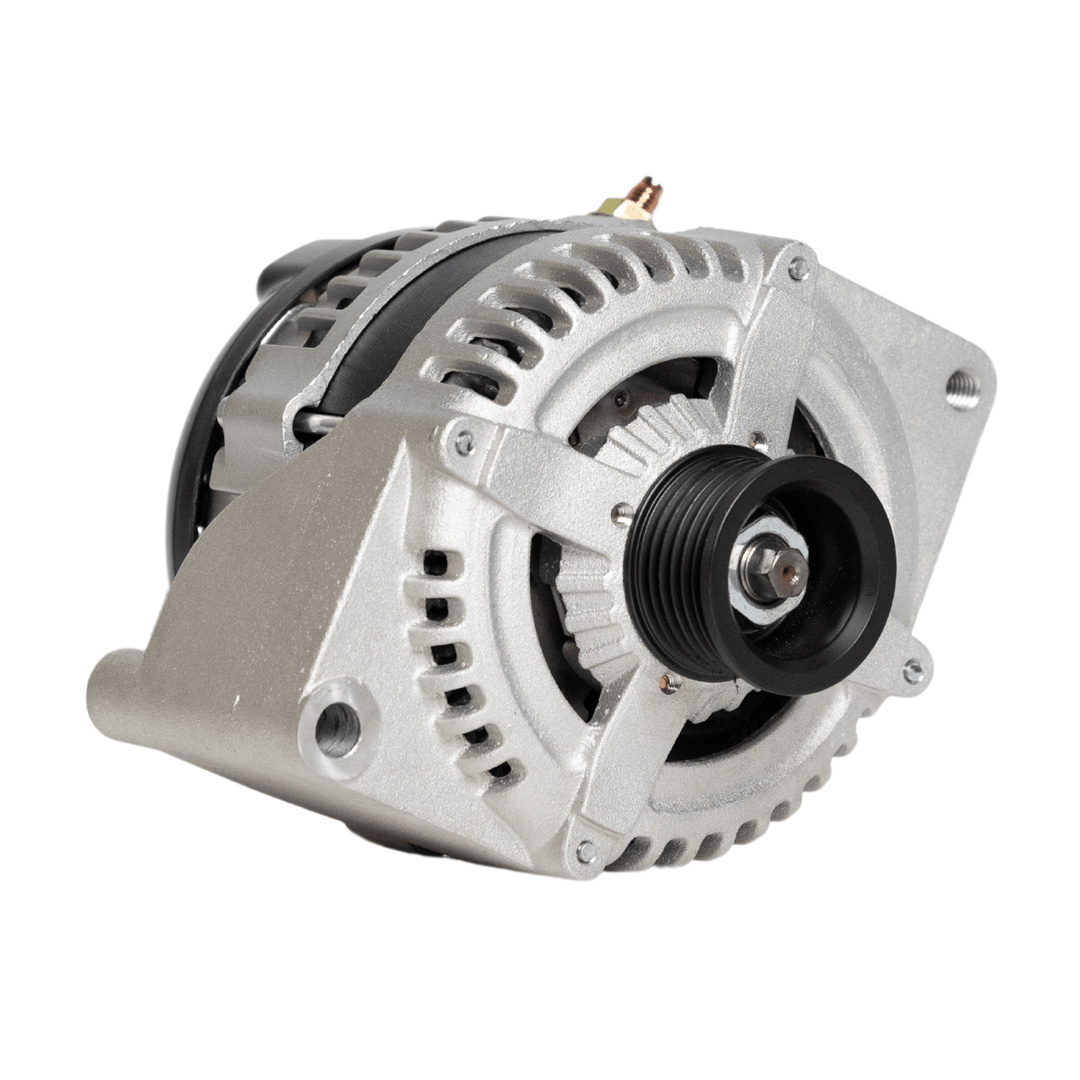

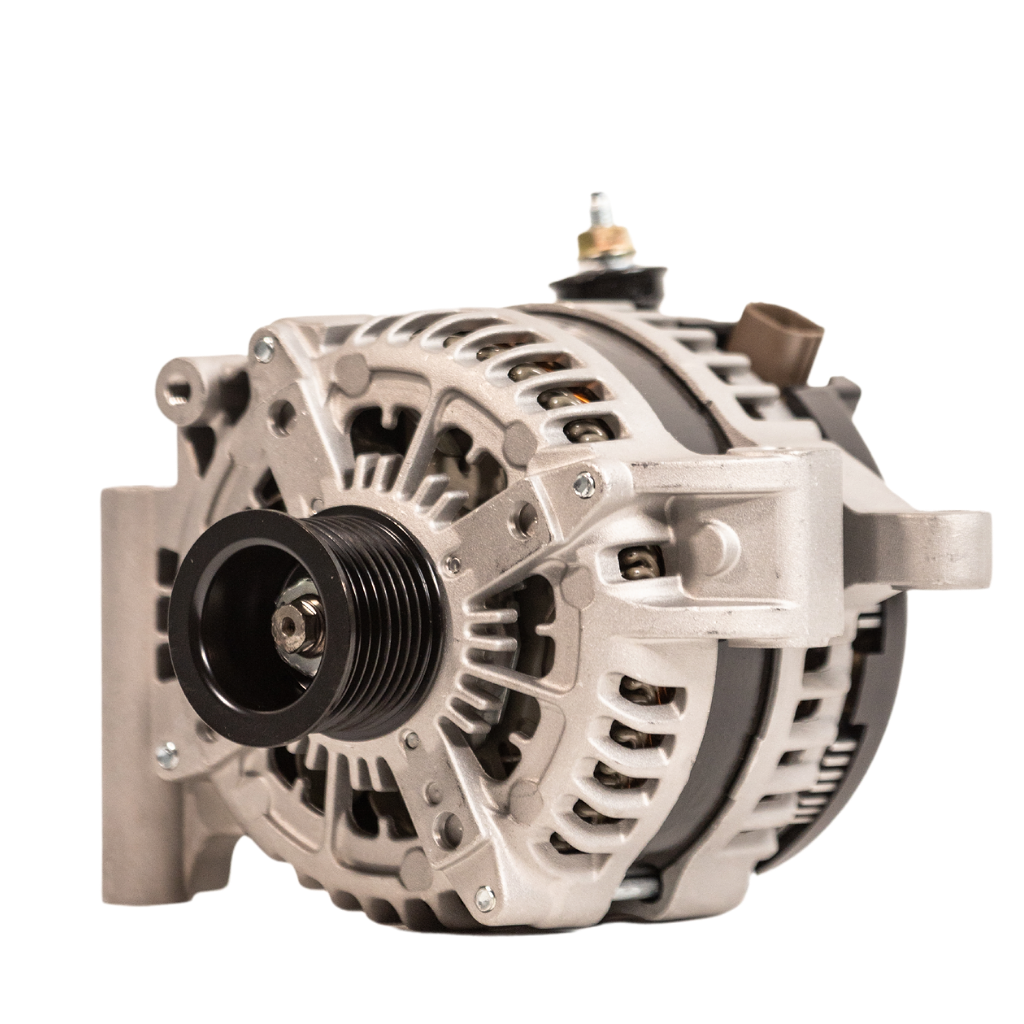

Consider upgrading to a high output alternator rather than replacing like-for-like — especially if you have any aftermarket accessories. The incremental cost is often minimal. See: OEM vs. Remanufactured vs. High-Output: Which Should You Buy?
If It's the Battery
Replace with a quality AGM battery. Avoid cheap flooded lead-acid batteries in vehicles with high electrical demands. If you're running a serious audio system, consider a dual battery setup: Dual Battery System Guide.
If It's Both
Replace the battery first, then retest the alternator. In many cases, the alternator tests fine once the battery is healthy. If the alternator still tests low after a good battery is installed, replace or upgrade the alternator.
