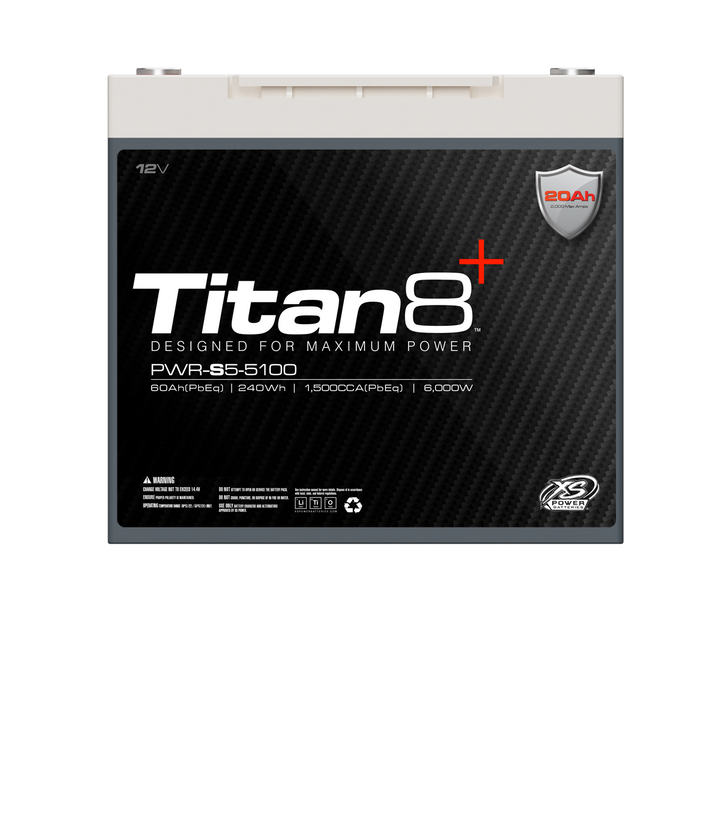

XS Power PWR-S5-5100 Group 51 12V Titan8 Lithium Titanate (LTO) Battery

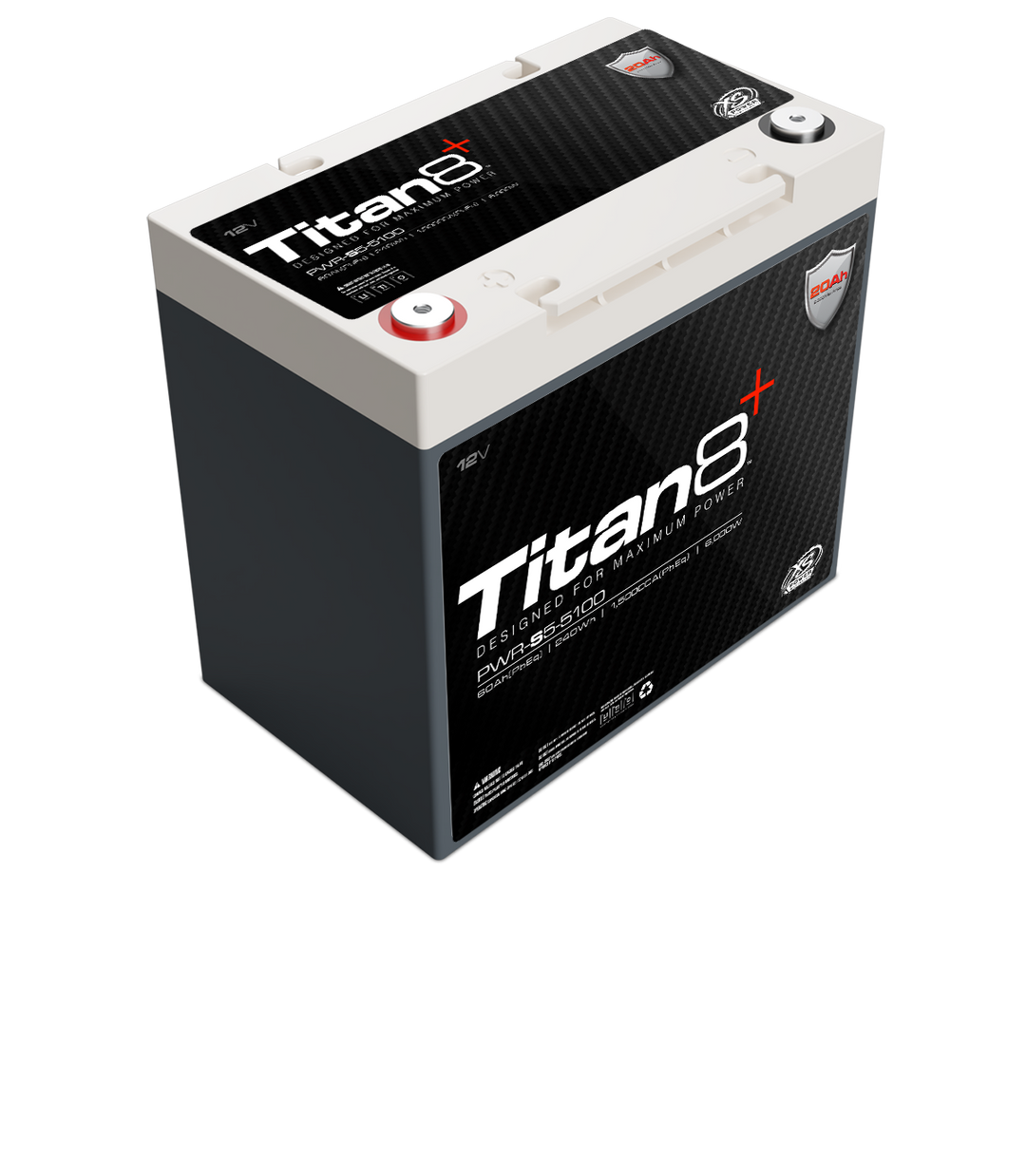

XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery
XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery
XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery
XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery

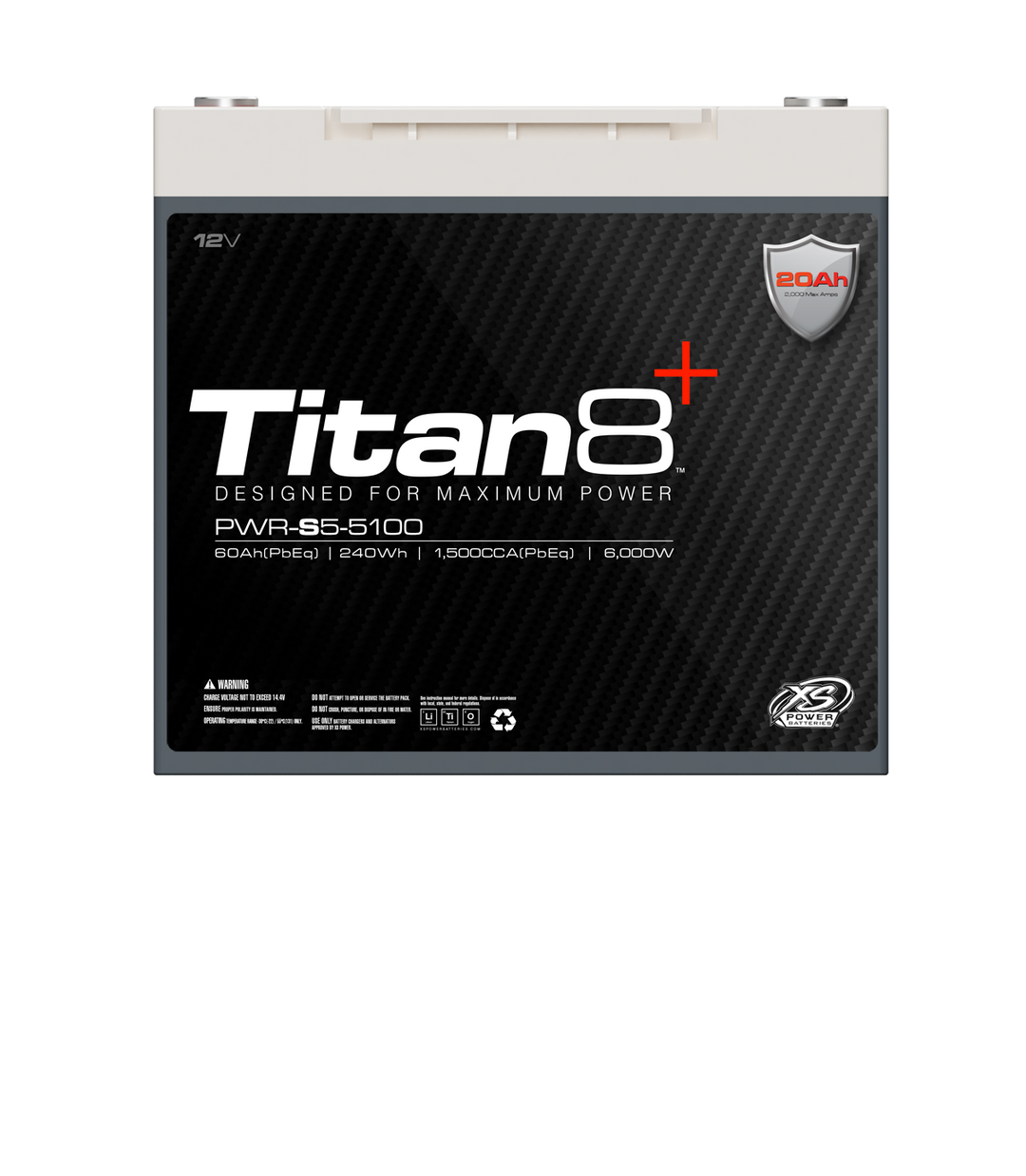

XS Power PWR-S5-5100 Group 51 12V Titan8 Lithium Titanate (LTO) Battery

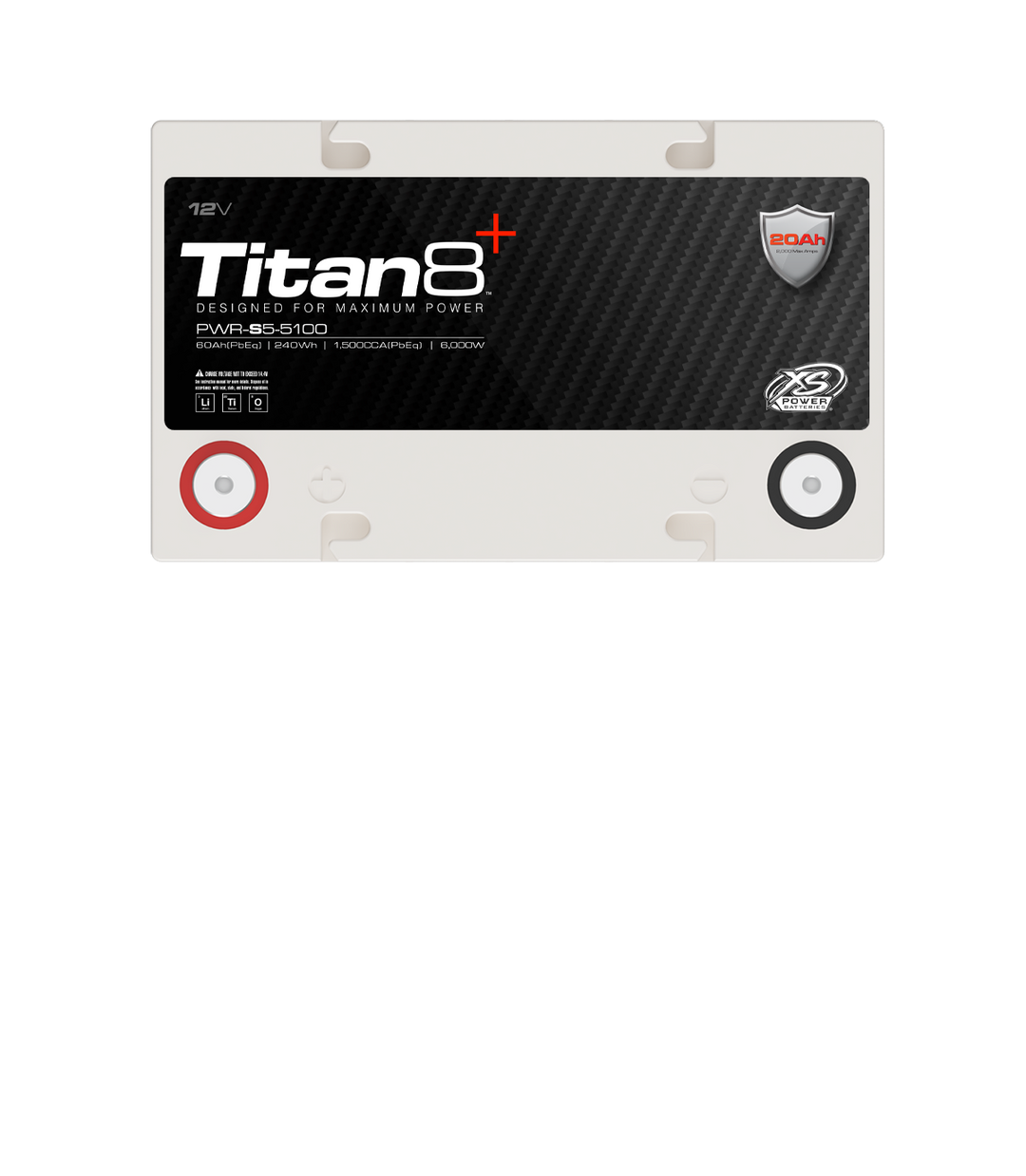

XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery
XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery
XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery
XS Power PWR-S5-5100 12V Titan8 Lithium Titanate (LTO) Battery

The XS Power PWR-S5-5100 12V Titan8 LTO battery delivers lithium titanate performance in one of the most widely used compact battery cases on the market — Group 51. Its LTO chemistry is capable of absorbing charge at rates that dwarf conventional AGM cells and pushing out high burst current that keeps amplifiers fed during the sharpest musical transients. Nine pounds of total weight and a four-year warranty make this an outstanding value proposition for anyone building a serious car-audio system or motorsport vehicle.

From front-engine daily drivers to trunk-mounted supplemental battery configurations, the PWR-S5-5100 finds a home wherever a Group 51 footprint is practical. SPL competitors value its fast charge recovery between rounds, while daily-driver enthusiasts appreciate the consistent high burst current performance over years of hard use. This is the Titan8 LTO battery that proves peak performance does not require a large, heavy package.

This Listing Includes: (1) XS Power PWR-S5-5100 Group 51 12V Titan8 Lithium Titanate (LTO) Battery

Specifications

Model PWR-S5-5100
Product Type Lithium Titanate (LTO) Batteries
Voltage 12V
BCI Group Size Group 51
Maximum Amps 2000A
Energy 120Wh
Lead-Equivalent Cranking Amps 1500A
Lead-Equivalent Amp Hours 60Ah
Cranking Amps 1000A
Amp Hours 20Ah
Rated Power 6000W
Polarity L
Warranty 4 years
UPC 692209054856
Package Length 10.75 in.
Package Width 7.13 in.
Package Height 10.83 in.
Package Weight 9 lbs.

Available from JS Alternators, an authorized XS Power retailer.

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.

For more information, visit www.P65Warnings.ca.gov.

XS Power PWR-S5-5100 Group 51 12V Titan8 Lithium Titanate (LTO) Battery

Financing available at checkout

Shop Pay Affirm Snap Finance Pay Pal
$699.99
USA-Made
1-Year Warranty
Lifetime Labor
Free Shipping
4.81 Stars

We offer free shipping in the United States. Orders ship in approximately 3-5 business days, sometimes sooner. Many alternators are shipped the same day. Alternators that require a custom bracket can take 5-8 business days. If for some reason parts are on back order, we will notify you, but this is not common. If order is placed after 12pm EST, shipping timeframes begin the next day.



REQUIRED Installation Steps:

(Wear eye protection, remove jewelry/loose items, and allow car to fully cool before starting installation)



  • Batteries must be fully charged before installation.
  • Make sure vehicle is off and engine is cool.
  • Disconnect the negative cable from the battery/batteries.
  • Disconnect all other wiring from the alternator.
  • Remove the belt (note the belt routing before removing).
  • Remove the bracket bolts and original alternator.
  • Mount the new alternator. Typically the original bolts will be used.
  • The belt must be replaced with a .5 to 1-inch shorter belt when installing a high output alternator, unless otherwise specified.
  • Install the new belt. Make sure the routing is correct and the belt is aligned with all pulley grooves.

Connections Of Frame/Body: Clean all metal surface of any paint or rust with a wire brush or die grinder. Use a conductive corrosion inhibitor available at any electrical parts supply store.

Grounding (Uni-body frame warning): Many newer vehicles have “uni-body” or sheet metal frame structures with no traditional “full frame”. Because of seams and adhesive attached body components, additional steps may be required for proper chassis grounding. Choose the location on the sub-frame with the thickest metal possible. If there is lower than spec charging voltage at the battery, move ground connections or add additional ground cables to different frame components.

*** WARNING *** Keep all electrical wiring at least 12” away from heat sources to avoid fire of the cable jacket!

There are THREE Regulator styles. Read each to determine which one your alternator has and read its the included notes:

  1. Factory Plug: The factory harness can be plugged into the new regulator. Be sure factory plug is clear of all debris and fully snapped into place in regulator.
  2. Turn On Single Wire Alternators: Follow this step ONLY if we shipped a pigtail plug with your alternator. Connect the excite wire (L) to a 7v to 15v ignition power source and connect the sense wire (S) directly to positive post on alternator. See picture of the Pigtail Plug below. PIGTAIL PLUG:

1987-1990 Jeep Comanche 4.0L High Output Alternator

  1. Self Excite Alternators: Self-exciting or better known as “one wire” alternators will have NO plug on the alternator, and the OEM alternator harness plug will be left disconnected. This type of alternator requires only the positive and negative battery cables to be connected to the alternator to function. These alternators are internally regulated and will turn themselves on and off with engines rotation and regulate their own charging voltage. (This may cause battery light to come on).

Gauges

It is highly recommended you add a dash mounted volt gauge.

  • Connect the battery ground and confirm all other electrical connections are complete.
  • Confirm the belt path is correct and clear of obstacles.
  • Before starting the vehicle confirm that the battery is charged, as starting the vehicle with a discharged battery can damage the alternator.
  • Use a battery charger to charge the battery first if voltage is inadequate.

Ground Path Resistance Test

If resistance is greater than 0.1V confirm the following:

  • Confirm that all paint, anodizing, or rust is removed, and the connections are to bare metal.
  • Make certain all terminals are tight to the wire.
  • Make certain the ground wire is of proper size.

Charge Path Resistance Test

If resistance is greater than 0.1V confirm the following:

  • Make sure alternator charge post nut is tight.
  • Make sure charge wire is proper size.

Battery Recommendation

  • 2000 watts: upgrade main battery, 1 rear battery
  • 3500 watts: upgrade main battery, 1-2 rear batteries
  • 5000 watts: upgrade main battery, 2-3 rear batteries
  • 7500 watts: upgrade main battery, 3-4 rear batteries – 2 alternators
  • 10,000 watts: upgrade main battery, 3-5 rear batteries – 2 alternators



js alternators big 3 wiring upgrade kit installation instructions



Big 3 Wiring

  • The big 3 Wiring upgrade is an ADDITION to your factory wiring.
  • All factory connections need to remain connected.
  • For protection it is recommended to add an in line fuse to the positive wire.
  • All grounds must be cleaned to bare metal and properly secured.

All factory connections need to remain connected.
For protection it is recommended to add an in line fuse to the positive wire. All grounds must be cleaned to bare metal and properly secured.

Positive 1/0 100% Pure Copper Cable

Connect from the positive stud on the alternator to the positive on the battery

Ground 1/0 100% Pure Copper Cable

Connect from alternator mount bolt to frame/chassis

Ground 1/0 100% Pure Copper Cable

Connect from negative on battery to the frame/chassis

Big 3 Wiring Kit With RVC

  • The big 3 Wiring upgrade is an ADDITION to your factory wiring.
  • All factory connections need to remain connected.
  • For protection it is recommended to add an in line fuse to the positive wire.
  • All grounds must be cleaned to bare metal and properly secured.

All factory connections need to remain connected.
For protection it is recommended to add an in line fuse to the positive wire.
All grounds must be cleaned to bare metal and properly secured.
RVC vehicles have a GROUND SENSOR LOOP in which the ground wire will need to be ran through this loop for proper performance.

Positive 1/0 100% Pure Copper Cable

Connect from the positive stud on the alternator to the positive on the battery

Ground 1/0 100% Pure Copper Cable

Connect from alternator mount bolt through the GROUND SENSOR LOOP to the negative on the battery

Ground 1/0 100% Pure Copper Cable

Connect from negative on battery to the frame/chassis

Depending on the application you may need to run a distribution block for better connections (if you have too many upgraded wires that cannot connect directly to the battery terminals).
UNI-BODY FRAMES: Additional steps may be required for proper grounding, You may need to choose a location on the sub-frame with the thickest metal for grounding.
