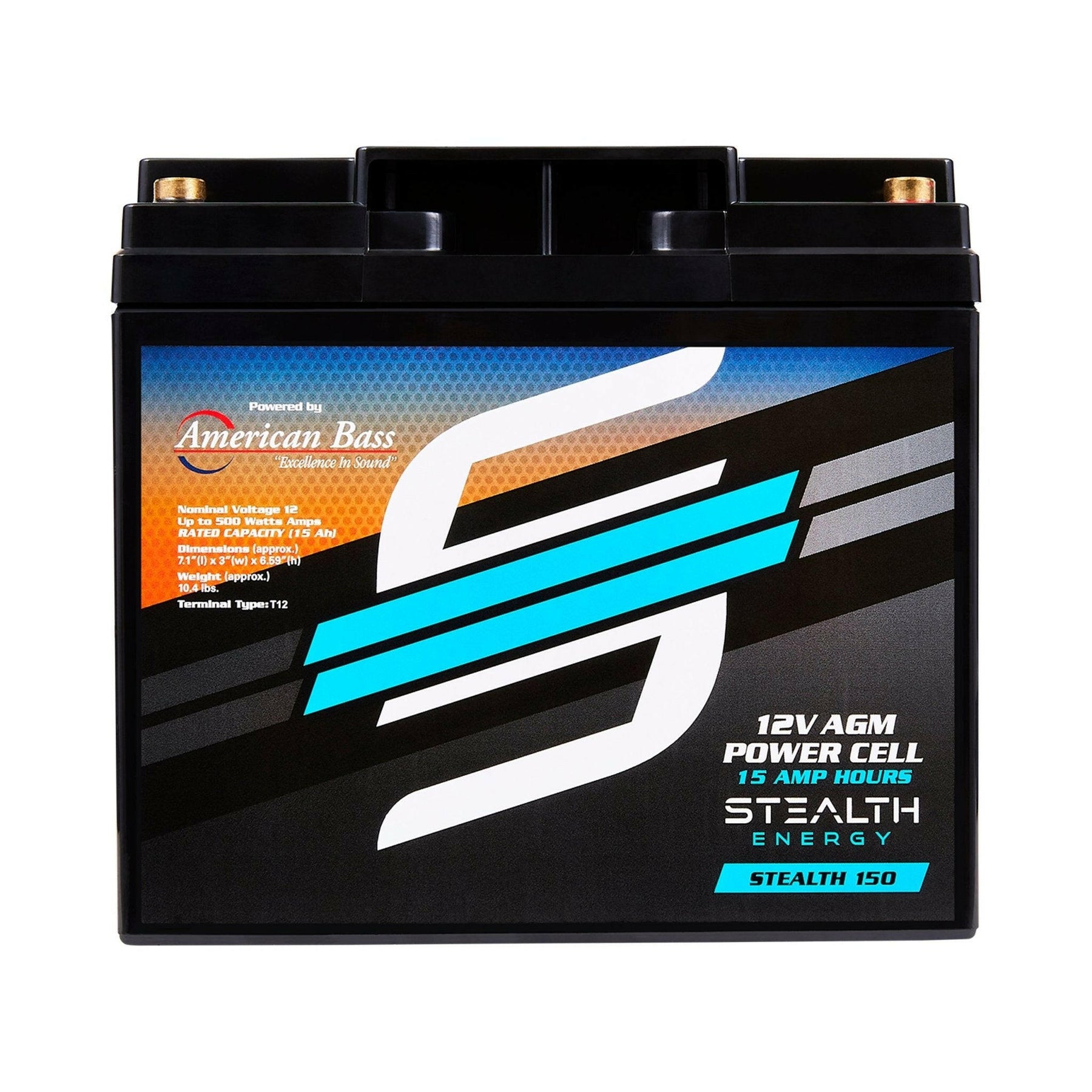

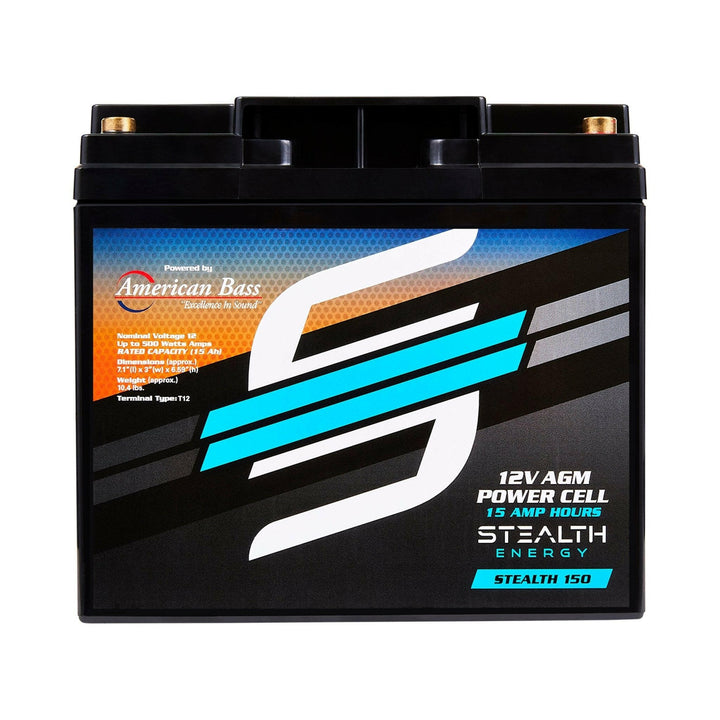

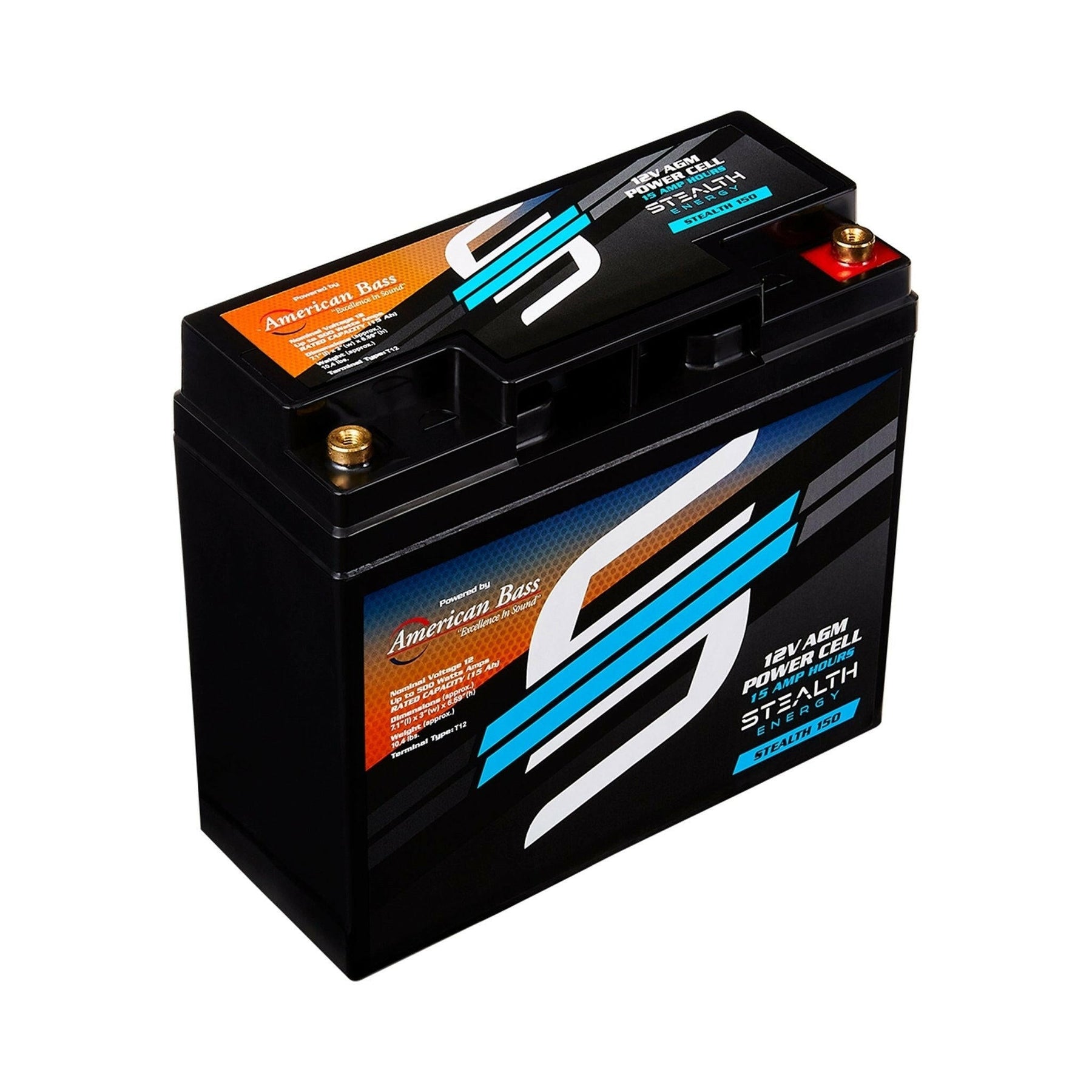

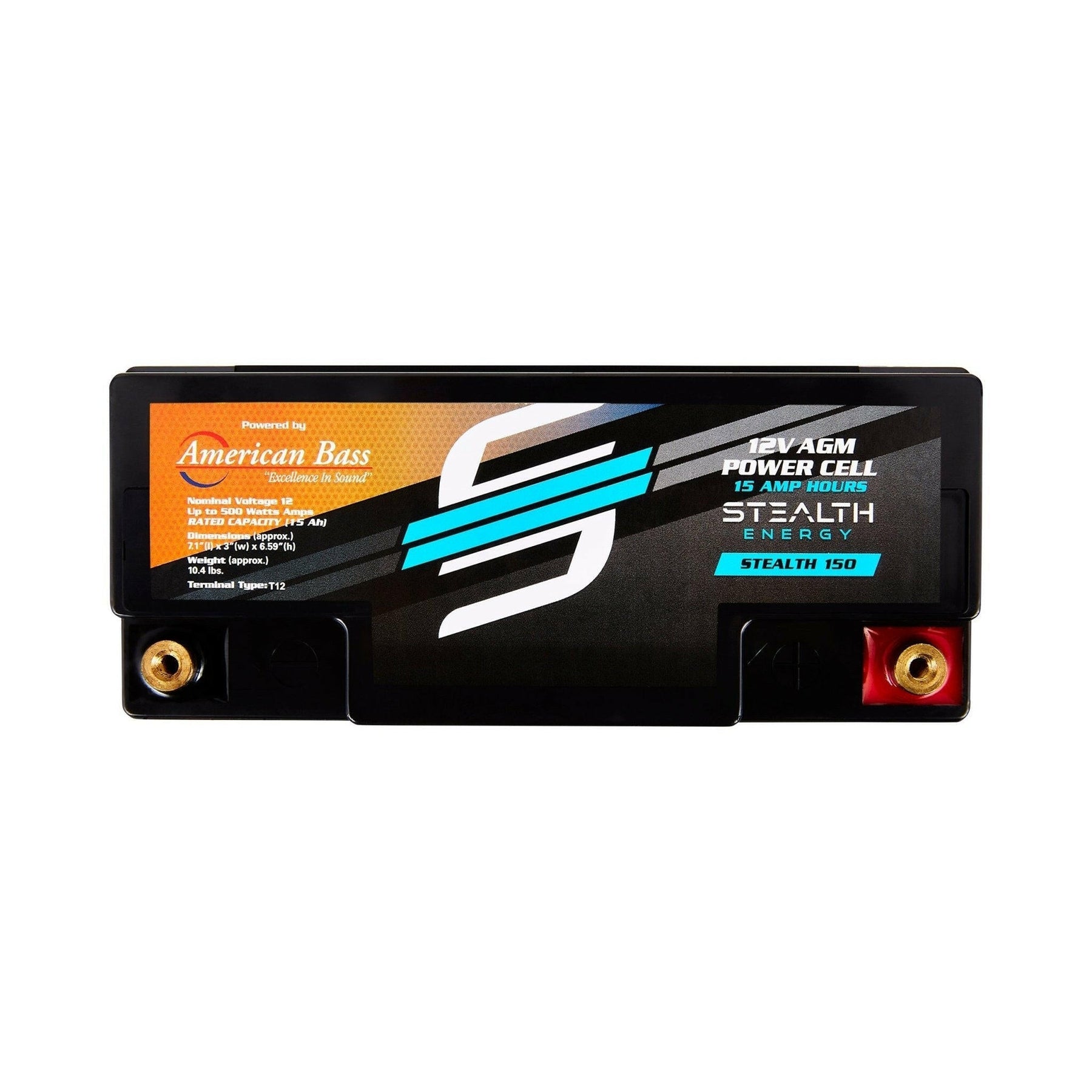

Stealth Energy ST-150 12V 15Ah AGM Battery

American Bass Stealth ST-150 15Ah AGM Car Audio Battery

ST-150 American Bass Audio Stealth 150 15Ah AGM Battery Maintenance-Free, Sealed Power for Car Audio & More

15Ah of 12V reserve capacity built on sealed Absorbed Glass Mat (AGM) technology
Supports amplifier setups up to 500 watts
225A max discharge current (5s burst) with an ultra-low 18mΩ internal resistance for minimal voltage sag
Fully sealed, maintenance-free ABS housing — mount in virtually any position, no spills or corrosion
Stable, clean 12-volt delivery that keeps amplifiers out of clipping during hard-hitting bass

Stealth Energy 150 — 15Ah AGM Car Audio Battery (ST-150)

This Listing Includes:

(1) Stealth Energy 150 Battery

The Stealth 150 is the most compact battery in the Stealth Energy lineup, built for enthusiasts who need clean, dedicated 12-volt power without eating up install space. With 15 amp-hours of capacity and support for amplifier setups up to 500 watts, it is the easiest way to add a stable secondary power source — ideal for compact car audio, motorcycle and powersports rigs, alarm systems, and other 12V applications. In stock and shipping free from JS Alternators — your authorized American Bass & Stealth Energy dealer.

Features

12V 15Ah sealed AGM battery for car audio and 12V power applications
Amplifier support up to 500 watts
225A maximum discharge current (5-second burst) for instant power on demand
Approximately 18mΩ internal resistance for fast, efficient energy delivery
Maintenance-free, spill-proof ABS construction with T12 terminals

Specifications

Nominal Voltage	12V
Nominal Capacity (20HR)	15.0Ah
Approximate Weight	4.9 kg (10.8 lbs)
Terminal	T12
Container Material	ABS
Max. Discharge Current	225A (5s)
Internal Resistance (approx.)	18mΩ
Dimensions	Length: 181.5 mm (7.14″) Width: 76.5 mm (3.01″) Container Height: 167.5 mm (6.59″) Total Height (with terminal): 167.5 mm (6.59″)
Amplifier Support	Up to 500 watts

Financing available at checkout

$98.95

USA-Made

1-Year Warranty

Lifetime Labor

Free Shipping

4.81 Stars

We offer free shipping in the United States. Orders ship in approximately 3-5 business days, sometimes sooner. Many alternators are shipped the same day. Alternators that require a custom bracket can take 5-8 business days. If for some reason parts are on back order, we will notify you, but this is not common. If order is placed after 12pm EST, shipping timeframes begin the next day.

REQUIRED Installation Steps:

(Wear eye protection, remove jewelry/loose items, and allow car to fully cool before starting installation)

Batteries must be fully charged before installation.
Make sure vehicle is off and engine is cool.
Disconnect the negative cable from the battery/batteries.
Disconnect all other wiring from the alternator.
Remove the belt (note the belt routing before removing).
Remove the bracket bolts and original alternator.
Mount the new alternator. Typically the original bolts will be used.
The belt must be replaced with a .5 to 1-inch shorter belt when installing a high output alternator, unless otherwise specified.
Install the new belt. Make sure the routing is correct and the belt is aligned with all pulley grooves.

Connections Of Frame/Body: Clean all metal surface of any paint or rust with a wire brush or die grinder. Use a conductive corrosion inhibitor available at any electrical parts supply store.

Grounding (Uni-body frame warning): Many newer vehicles have “uni-body” or sheet metal frame structures with no traditional “full frame”. Because of seams and adhesive attached body components, additional steps may be required for proper chassis grounding. Choose the location on the sub-frame with the thickest metal possible. If there is lower than spec charging voltage at the battery, move ground connections or add additional ground cables to different frame components.

*** WARNING *** Keep all electrical wiring at least 12” away from heat sources to avoid fire of the cable jacket!

There are THREE Regulator styles. Read each to determine which one your alternator has and read its the included notes:

Factory Plug: The factory harness can be plugged into the new regulator. Be sure factory plug is clear of all debris and fully snapped into place in regulator.
Turn On Single Wire Alternators: Follow this step ONLY if we shipped a pigtail plug with your alternator. Connect the excite wire (L) to a 7v to 15v ignition power source and connect the sense wire (S) directly to positive post on alternator. See picture of the Pigtail Plug below. PIGTAIL PLUG:

1987-1990 Jeep Comanche 4.0L High Output Alternator

Self Excite Alternators: Self-exciting or better known as “one wire” alternators will have NO plug on the alternator, and the OEM alternator harness plug will be left disconnected. This type of alternator requires only the positive and negative battery cables to be connected to the alternator to function. These alternators are internally regulated and will turn themselves on and off with engines rotation and regulate their own charging voltage. (This may cause battery light to come on).

Gauges

It is highly recommended you add a dash mounted volt gauge.

Connect the battery ground and confirm all other electrical connections are complete.
Confirm the belt path is correct and clear of obstacles.
Before starting the vehicle confirm that the battery is charged, as starting the vehicle with a discharged battery can damage the alternator.
Use a battery charger to charge the battery first if voltage is inadequate.

Ground Path Resistance Test

If resistance is greater than 0.1V confirm the following:

Confirm that all paint, anodizing, or rust is removed, and the connections are to bare metal.
Make certain all terminals are tight to the wire.
Make certain the ground wire is of proper size.

Charge Path Resistance Test

If resistance is greater than 0.1V confirm the following:

Make sure alternator charge post nut is tight.
Make sure charge wire is proper size.

Battery Recommendation

2000 watts: upgrade main battery, 1 rear battery
3500 watts: upgrade main battery, 1-2 rear batteries
5000 watts: upgrade main battery, 2-3 rear batteries
7500 watts: upgrade main battery, 3-4 rear batteries – 2 alternators
10,000 watts: upgrade main battery, 3-5 rear batteries – 2 alternators

Big 3 Wiring The big 3 Wiring upgrade is an ADDITION to your factory wiring. All factory connections need to remain connected. For protection it is recommended to add an in line fuse to the positive wire. All grounds must be cleaned to bare metal and properly secured. All factory connections need to remain connected. For protection it is recommended to add an in line fuse to the positive wire. All grounds must be cleaned to bare metal and properly secured.
Positive 1/0 100% Pure Copper Cable	Connect from the positive stud on the alternator to the positive on the battery
Ground 1/0 100% Pure Copper Cable	Connect from alternator mount bolt to frame/chassis
Ground 1/0 100% Pure Copper Cable	Connect from negative on battery to the frame/chassis
Big 3 Wiring Kit With RVC The big 3 Wiring upgrade is an ADDITION to your factory wiring. All factory connections need to remain connected. For protection it is recommended to add an in line fuse to the positive wire. All grounds must be cleaned to bare metal and properly secured. All factory connections need to remain connected. For protection it is recommended to add an in line fuse to the positive wire. All grounds must be cleaned to bare metal and properly secured. RVC vehicles have a GROUND SENSOR LOOP in which the ground wire will need to be ran through this loop for proper performance.
Positive 1/0 100% Pure Copper Cable	Connect from the positive stud on the alternator to the positive on the battery
Ground 1/0 100% Pure Copper Cable	Connect from alternator mount bolt through the GROUND SENSOR LOOP to the negative on the battery
Ground 1/0 100% Pure Copper Cable	Connect from negative on battery to the frame/chassis
Depending on the application you may need to run a distribution block for better connections (if you have too many upgraded wires that cannot connect directly to the battery terminals). UNI-BODY FRAMES: Additional steps may be required for proper grounding, You may need to choose a location on the sub-frame with the thickest metal for grounding. If you have any questions feel free to email or call us as we are happy to help: questions@js-alternators.com (888) 245-3680

Looking to return an item? Read our return policies and fill out the Return & RGA Requests Form linked here and at the top of our website.

Warranty Information:

All JS Alternators come with a 1 year warranty. Optional 2 year and lifetime warranty upgrades extend the warranty coverage period only and do not change the warranty service process. All warranty claims, whether covered by the included 1 year warranty or a purchased 2 year or lifetime warranty, require the alternator to be sent in to JS Alternators for inspection, testing, and repair. Warranty coverage is for repair service only and does not guarantee that a new or replacement alternator will be shipped automatically. Powder coat is non-refundable as it is custom powder coated per order. Original invoice or copy of original invoice must be included in order to receive warranty service. This warranty covers repairs to the JS Alternator only and does not include other parts on the vehicle. This warranty does not include any labor expenses for installation or uninstallation of the alternator.

The following will void any and all warranties:

Improper installation
Improper belt length
Improper wiring (no installation of big 3 wiring upgrade kit)
Changing parts on the alternator, including pulley and regulator
Any unauthorized modifications (this includes disassembling the alternator)
Painting or powder coating the alternator by an outside party
Misuse or abuse of the alternator (not having adequate battery reserve for demand of power draw)
If repairs have been completed by anyone other than JS Alternators

This warranty does not cover other parts or equipment on the vehicle and it does not cover labor expenses related to the removal or installation of the alternator, nor rental cars or any other expenses incurred.

SHIPPING POLICY

Customers will be liable for return shipping costs for alternators repaired under warranty.
JS Alternators will cover shipping costs of the alternator back to the customer after warranty repair if still inside the 1 year warranty.
Customers outside of the continental US will be responsible for return shipping costs.
PLEASE PACKAGE YOUR RETURN CAREFULLY TO AVOID DAMAGE FEES!
Costs associated with repairing damage caused by return shipping will be the responsibility of the customer.
If order is placed after 12pm EST, shipping timeframes begin the next day.

RETURN POLICY

PLEASE COMPLETE AND SUBMIT THE RGA REQUESTS AND RETURN FORM BEFORE RETURNING ANY PRODUCTS. CUSTOMERS MUST RECEIVE AN EMAIL CONFIRMATION BEFORE RETURNS ARE AUTHORIZED.

All custom ordered alternators, including pulley, regulator, powder coating, and custom housings, are NON-RETURNABLE.

All JS Alternators are custom built to order. New and unused standard alternators may be returned within 90 days of purchase but will be subject to a 10% restocking fee after full inspection. After 90 days from the purchase date have passed, all orders are non-refundable. If the alternator has been installed and used it is non-refundable.

Big 3 Kits are NON-RETURNABLE

"Universal" fit Alternators are NON-REFUNDABLE

Frequently Asked Questions

We offer free shipping in the United States. Orders ship in approximately 3-5 business days, sometimes sooner. Many alternators are shipped the same day. Alternators that require a custom bracket can take 5-8 business days. If for some reason parts are on back order, we will notify you, but this is not common. If order is placed after 12pm EST, shipping timeframes begin the next day.

We offer lifetime warranty on alternator labor and a one year warranty on parts. All orders are heavily wrapped for shipping with several layers of big bubble wrap and two layers of boxes along with a Fragile sticker on the box. If you have to ship your alternator back, please be sure you wrap it the same way to prevent further damage. See more details on our warranty page.

Each of our high output alternators come with smaller overdrive pulley. This pulley is made to increase low RPM charging for maximum output. It is custom for the diameter of the overdrive to be less than your factor pulley, depending on the kind of vehicle you own. For this reason, unless otherwise specified, you will need at least a 1/2 inch shorter belt. You can purchase this from any auto parts store. In using the belt and the pulley system, ensure that each part of the pulley system is free of oil or grease, this will help its efficiency.

It is important to make sure that the small regulator plug that is located on the back of the alternator is well plugged in for the correct functionality. Do not forget to plug it in completely, try not to jam the plugs in backwards, and avoid pinching it in order not to create a short. For more information on regulators and wiring see installation instructions.

Our high output alternators come with an overdrive pulley. The pulley is designed to improve low RPM charging so that it yields maximally. Do not change this overdrive pulley out with a larger diameter pulley. When alternator pulley diameter is increased, the output amperage decreases. Changing the pulley will void all warranties

As promised to all our customers, our products are fully tested ensuring their outstanding performance before shipping. In our experience through the years, it is in many cases not the alternator itself. You must ensure you consider a few possible concerns in your troubleshooting – please read the instruction manual thoroughly.

The reason could be one of two things: Either the plug is wired incorrectly or the computer is sensing the higher voltage and causing the battery light to come on even though the alternator is charging properly. Please refer to the instruction manual tab on the website for specific instructions that will help you with wiring. For some older vehicles, the factory style regulator is not available with the hairpin style alternator. This is why your high output alternator will come already “upgraded” with the 15 volt regulator. It will have an oval plug which requires splicing into the factory plug. This is a simple ,fast step and these instructions are detailed for you in the instruction manual.

We currently offer a curated lineup of powder-coating colors displayed on this product page. These are the only finishes available at this time, although we’re always exploring new options for the future. If a new color gets added to the family, you’ll see it show up here first!

We use your vehicles stock voltage unless requested otherwise.
